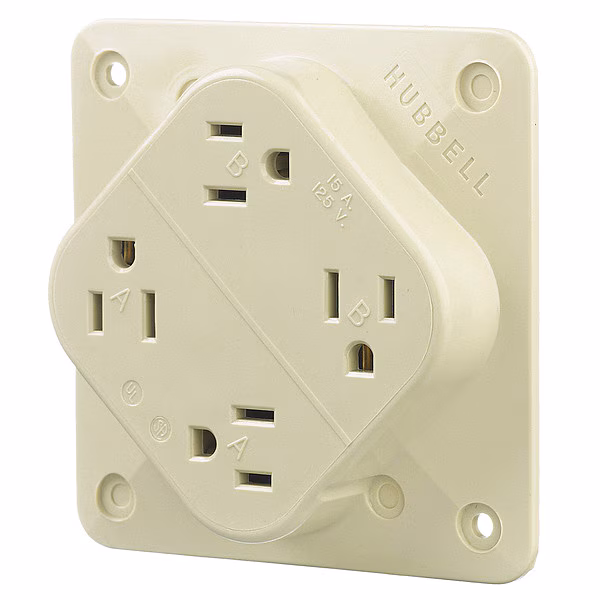

Hubbell Straight Blade Four Outlet Receptacle
- The HUBBELL Receptacle is a 15A, 125V AC quad outlet designed for surface mounting in commercial and industrial settings
- This receptacle features four NEMA 5-15R outlets within a single device, allowing multiple connections from one location
- It is constructed with a polycarbonate housing and brass contacts suitable for indoor use
- Outlet Configuration: Four NEMA 5-15R straight blade outlets in a quad arrangement
- Mounting Type: Surface mount design suitable for indoor installation
- Electrical Rating: Rated for 15 amps at 125 volts AC; supports up to 1/2 horsepower loads

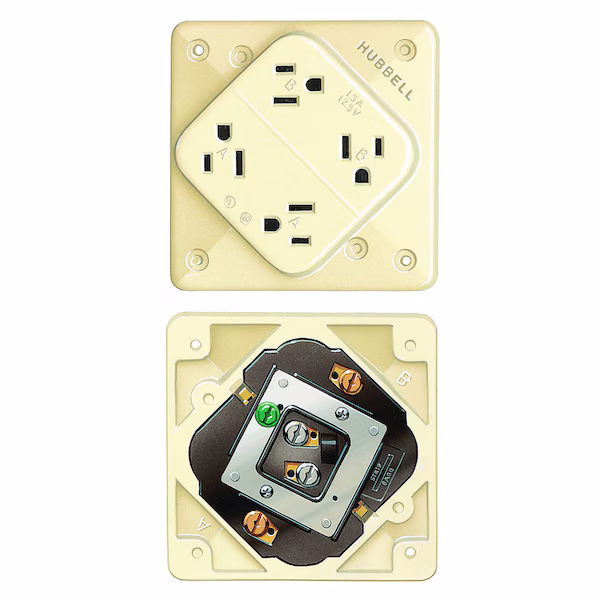

- Wiring Method: Back-wired screw terminals accommodate #14–12 AWG copper conductors (stranded or solid)
- Material Construction: Polycarbonate base and housing with .032″ brass power contacts
- Grounding: Grounded, two-pole three-wire configuration with green #8-32 brass ground screw
- Circuit Features: Anchor hole and loop feature secures solid wire; triple wipe contacts; break-off tabs allow split wiring of outlets
- Certifications & Standards: Listed to UL Standard 498, CSA Certified C22.2 No.42, meets NEMA WD-6 requirements
