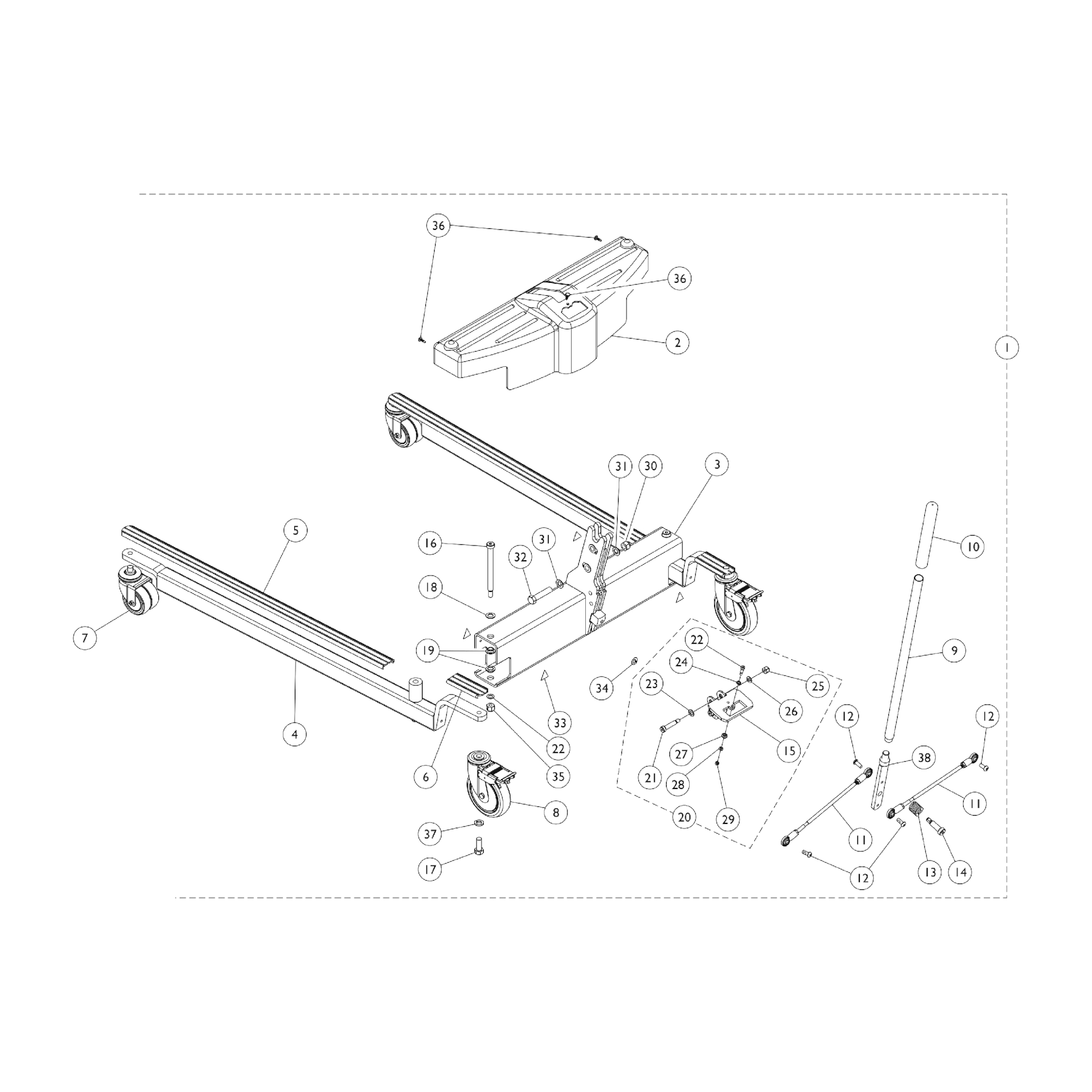

RPL600-1 Base Assembly (After 7/1/2010)
#1Reliant RPL450-1, RPL600-1 Base Kit#2Reliant Base Shroud#5Reliant Front Leg Cover#6Reliant Rear Leg Cover#73″ Dual Reliant Caster#85″ Locking Rear Caster#9Reliant Leg Spreader Handle#10Spreader Bar Grip Handle#11Reliant Tie Rod#12Reliant Screw, Socket Button Head#13Reliant Spreader Bar Spring#16Reliant Base, Socket Screw 5″#17Reliant 5″ Rear Caster Stem#18Reliant Base Washer#19Flanged Pivot Bushing#20Reliant Leg Index Plate#31Reliant Base Washer#32Reliant Hardware Screw, Hex Head#35Locknut, 3/8-16#36Reliant Base Shroud Clip#37Lock Washer, 1/2″#38Reliant Base Handle Mount
Mast Assembly Model - RPL600-1
#1Reliant Screw, Mast#2Reliant Hardware, Spacer#3Invacare Locknut (5/16-18)#4End Cap, Reliant Lift#6Reliant Battery/Control Box Bracket#8Locknut (1/2-13)#9Reliant Base Washer#10Reliant Hardware Screw, Hex Head#11Screw, Socket Head Shoulder#12Reliant Mast Bushing#13Screw, Phillips Pan Head#14Reliant Lift Up-Down Actuator#15Linak Patient Lift Battery Box#16Reliant Control Box, Up/Down#17Linak Patient Lift Charger#19Bracket, Wall Mount Charger#20Reliant 2-Button Handset#21Reliant Lift Charger Cord#23Invacare Locknut (5/16-18)

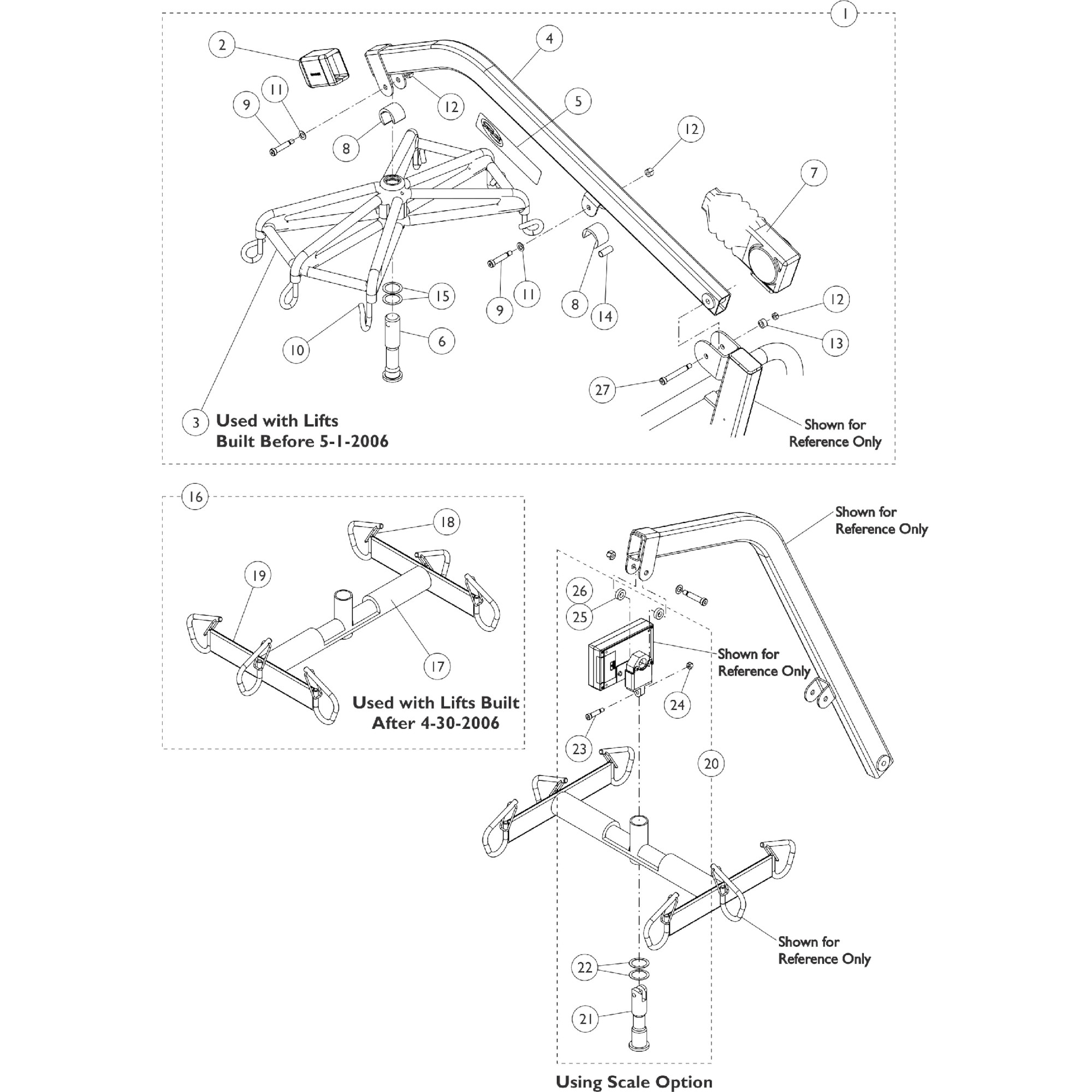

Boom Assembly RPL600-1
#2Reliant Bumper Pad#3Reliant End Cap#4Reliant Lift Boom Arm#6Spreader Bar Hanger Pin#7Boot, Black Rubber#9Screw, Socket Head Shoulder#11Washer, Flat#12Invacare Locknut (5/16-18)#13Reliant Hardware, Spacer#14Reliant Mast Bushing#15Reliant Hanger Pin Nylon Washer#17Reliant Hanger Bar Pad#18Spreader Bar Clips#19Reliant RPL600 Hanger Bar Kit#20Reliant Scale Hardware Kit#27Reliant Screw, Boom/Mast
