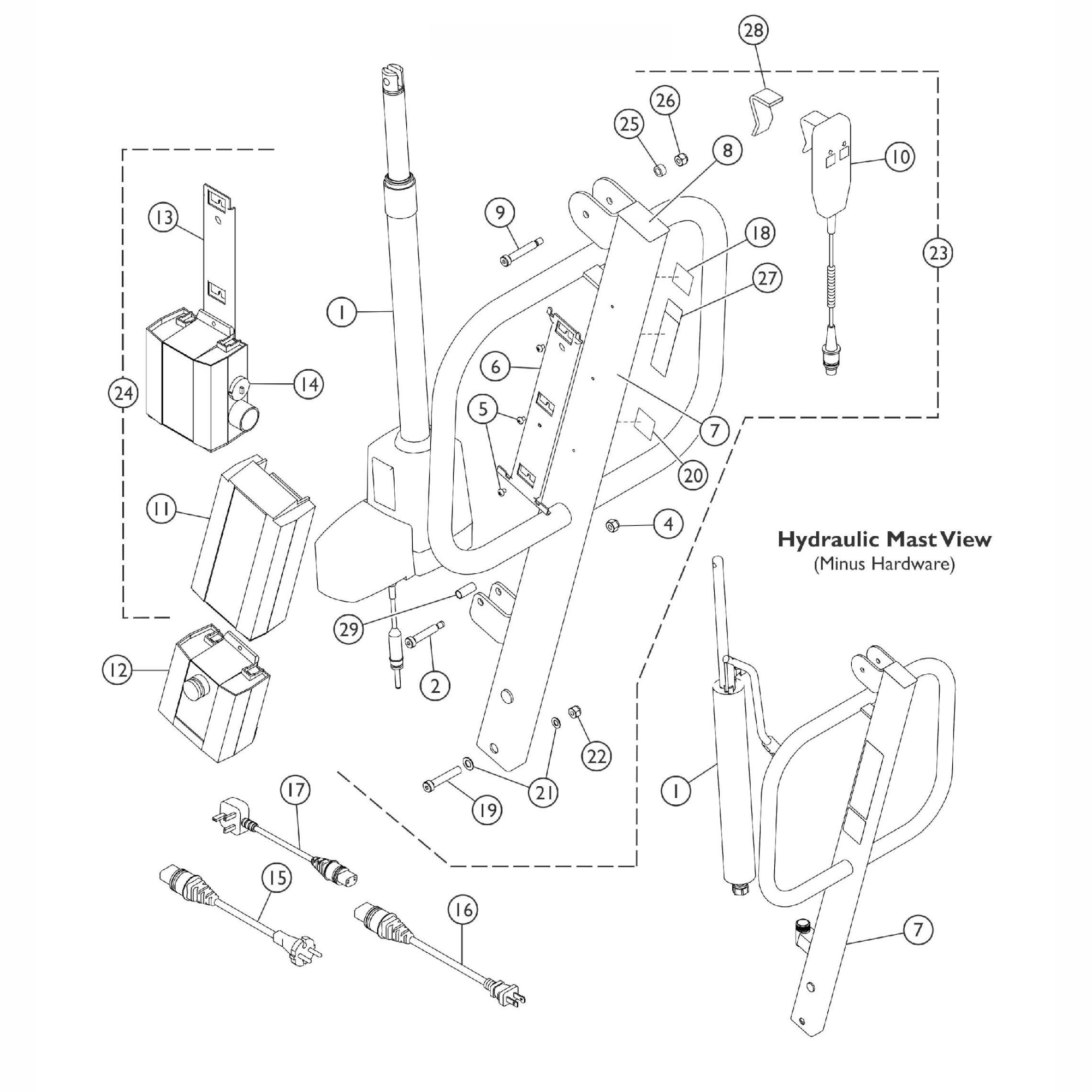

RPL450-1 Mast Assembly Parts
#1Reliant Lift Up-Down Actuator#N/SRPL450-1 Mast w/ Attaching Hardware#2Screw, Socket Head Shoulder#3Washer, Flat#4Invacare Locknut (5/16-18)#5Screw, Phillips Pan Head#6Reliant Battery/Control Box Bracket#8End Cap, Reliant Lift#9Reliant Screw, Boom/Mast#10Reliant 2-Button Handset#11Linak Patient Lift Battery Box#12Reliant Control Box, Up/Down#13Bracket, Wall Mount Charger#14Linak Patient Lift Charger#16Reliant Lift Charger Cord#19Reliant Hardware Screw, Hex Head#21Reliant Base Washer#22Reliant Mast Bushing#24Reliant Lift Charger Kit#25Reliant Hardware, Spacer#26Invacare Locknut (5/16-18)#27Reliant Hardware, Spacer
RPL450-1 Base Assembly Parts

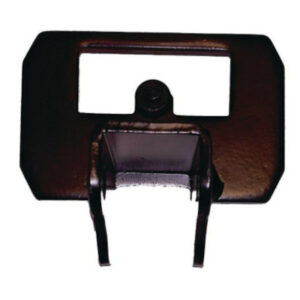

#1Reliant RPL450-1, RPL600-1 Base Kit#2Reliant Base Shroud#3Reliant Leg, Low Base#4Reliant Front Leg Cover#53″ Dual Reliant Caster#65″ Rear Locking Caster, Set#65″ Locking Rear Caster#7Spreader Bar Grip Handle#8Reliant Leg Spreader Handle#9Reliant Base Handle Mount#10Reliant Tie Rod#11Reliant Screw, Socket Button Head#12Reliant Spreader Bar Spring#13Reliant Hardware, Hex Shoulder Screw#14Reliant Leg Index Plate#24Washer, Flat#26Locknut (1/2-13)#27Reliant Base Washer#28Reliant Hardware Screw, Hex Head#29Reliant Base, Socket Screw 5″#30Flanged Pivot Bushing#31Locknut, 3/8-16#32Reliant Rear Leg Cover#33Lock Washer, 1/2″#34Reliant Screw, Hex Head#35Reliant Base Shroud Clip#36Reliant Cross Support (After 7/1/10)
RPL450-1 Boom Assembly Parts
#1Reliant Complete Mast and Boom Kit#2Reliant Bumper Pad#3Reliant End Cap#4Reliant Lift Boom Arm#6Spreader Bar Hanger Pin#7Boot, Black Rubber#8Reliant Finger Guard#9Screw, Socket Head Shoulder#10Reliant Mast Bushing#12Washer, Flat#13Invacare Locknut (5/16-18)#14Reliant Hanger Pin Nylon Washer#15Reliant Hardware, Spacer#16Invacare Locknut (5/16-18)#17Reliant RPL450 Hanger Bar Kit#18Reliant Hanger Bar Pad#19Spreader Bar Clips#20Reliant Hanger Bar, 6-Point#21Reliant Scale Hardware Kit#28Reliant Screw, Boom/Mast
